The ratio of 1:2 is used to derive the rectangular spaces. Not only in the horizontal planes, but also the same ratio is used in vertical planes. Thus, the play of vertical and horizontal planes  makes the building facades more interesting.​

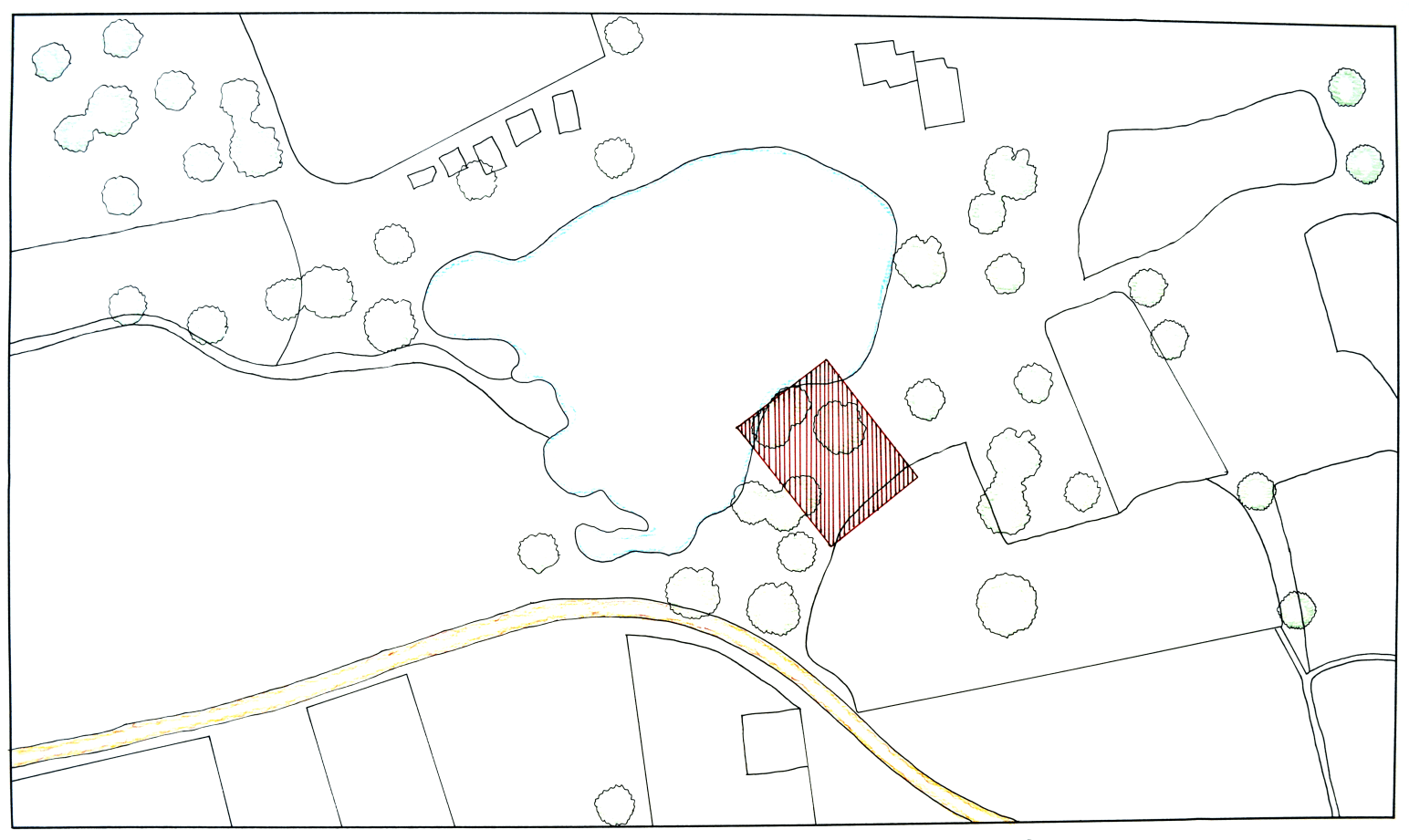

Site Plan

Site Plan

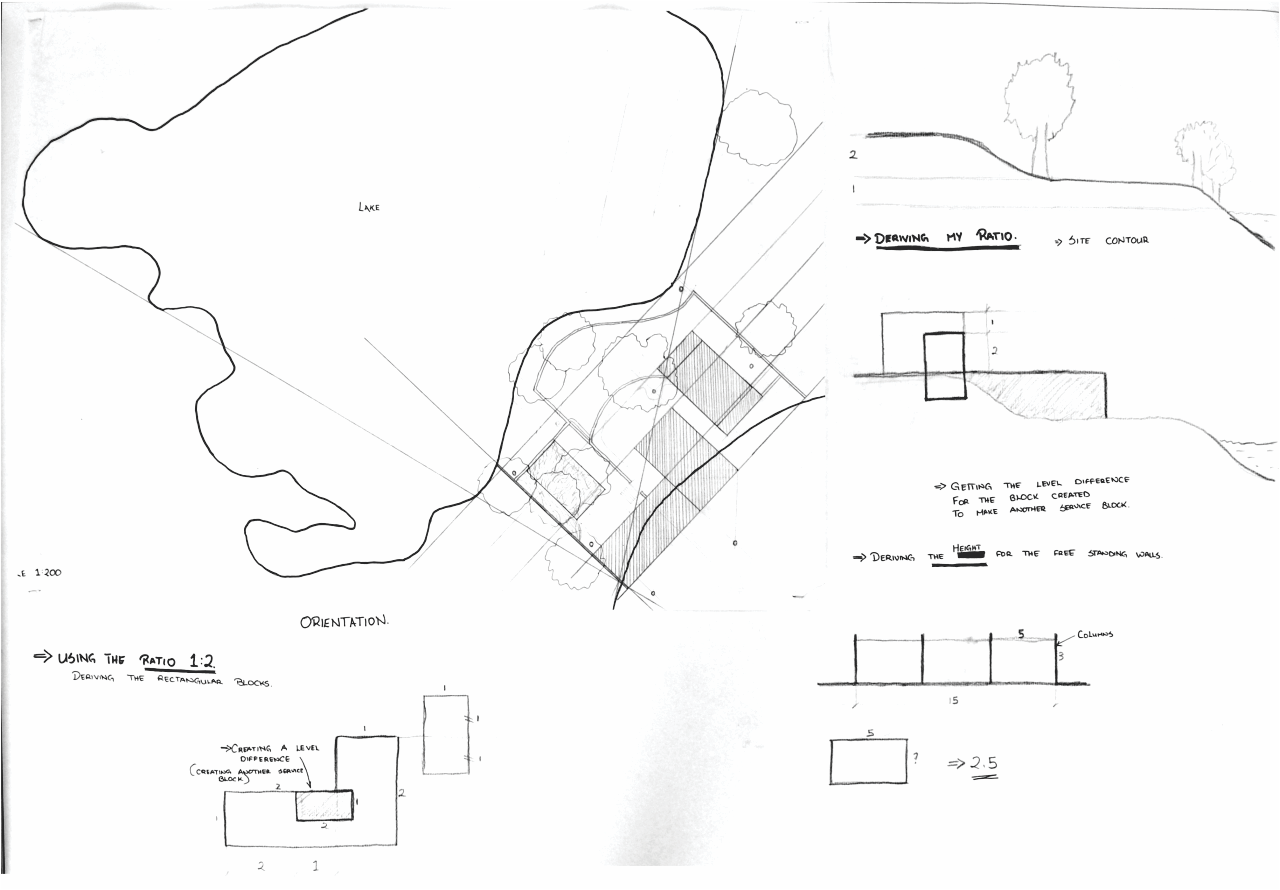

Conceptual 1

Conceptual 1

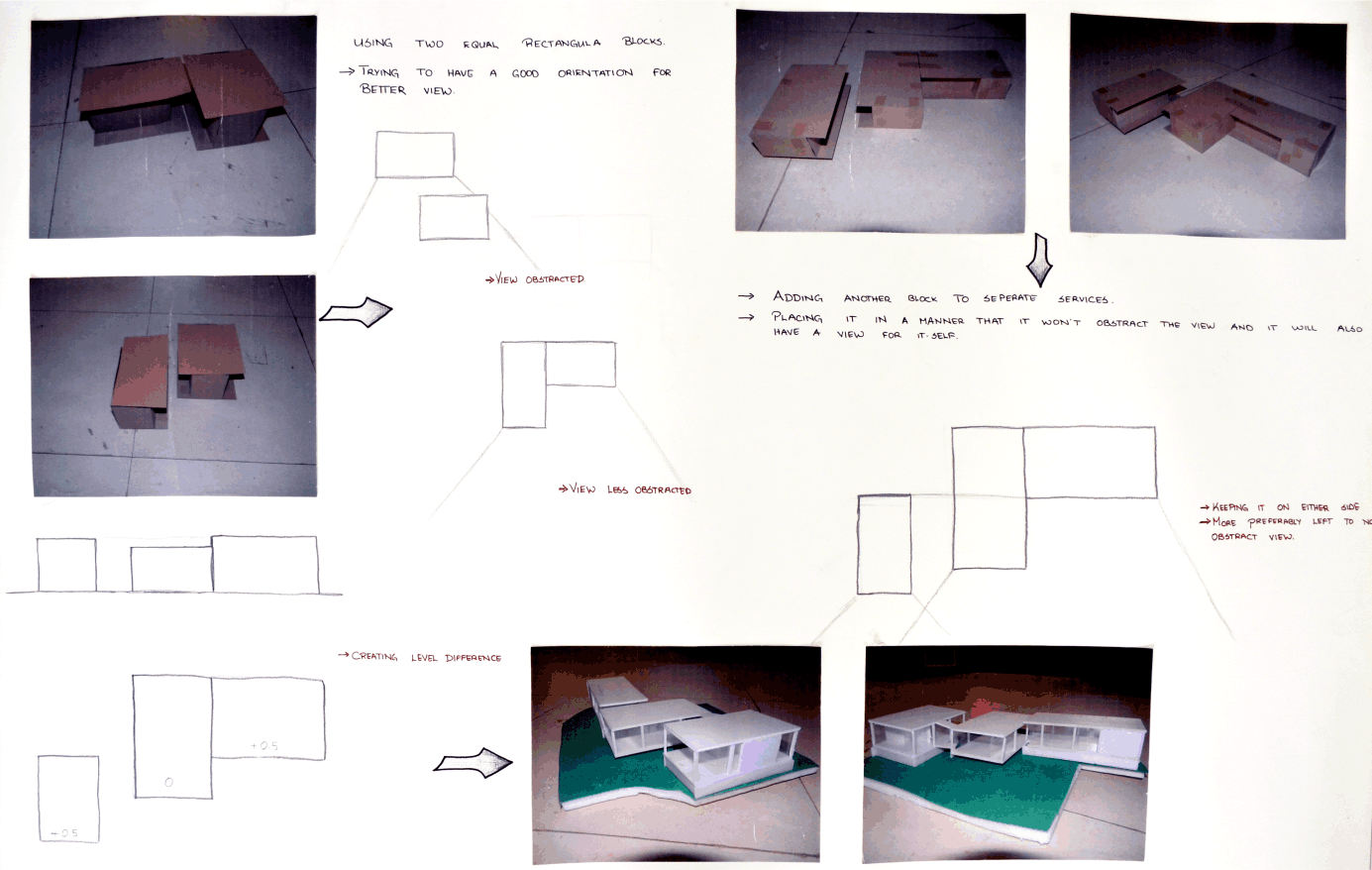

Conceptual 2

Conceptual 2

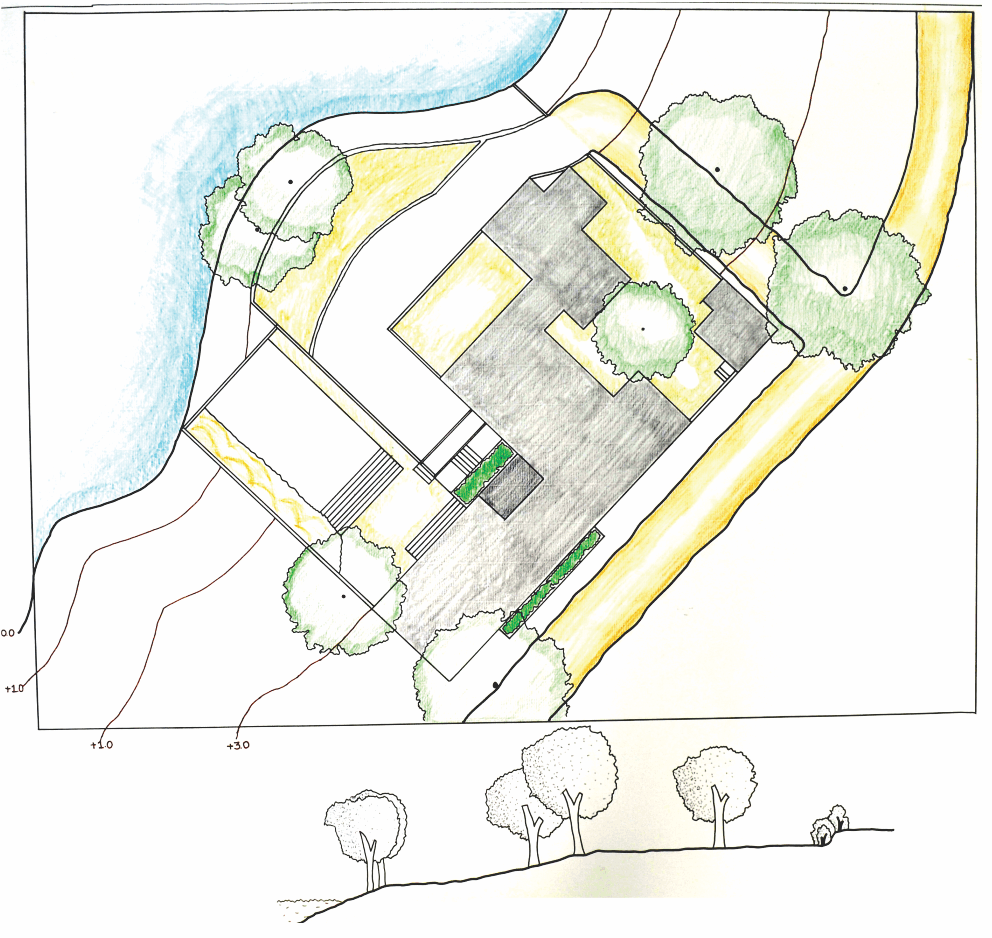

Roof Plan

Roof Plan

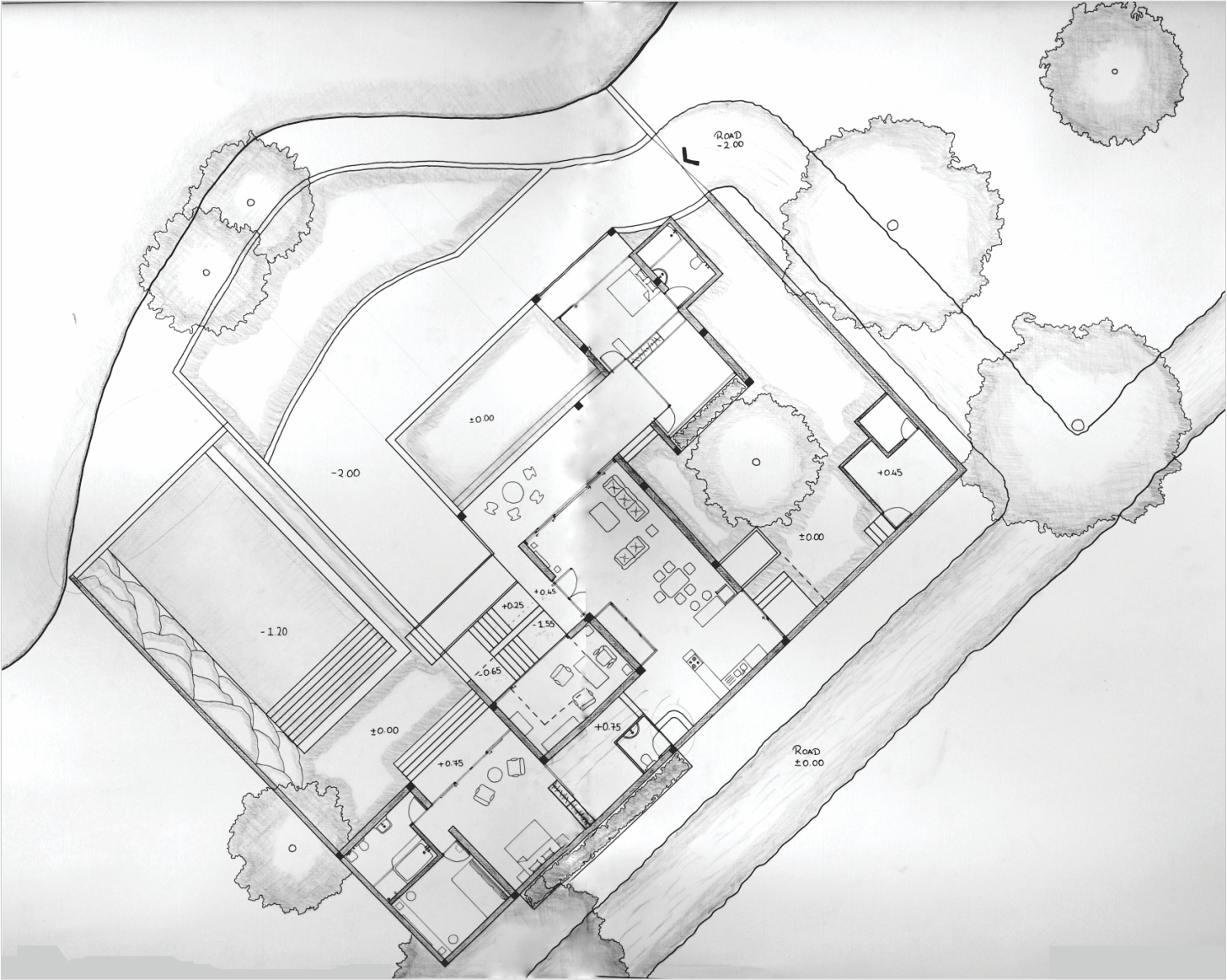

Plan

Plan

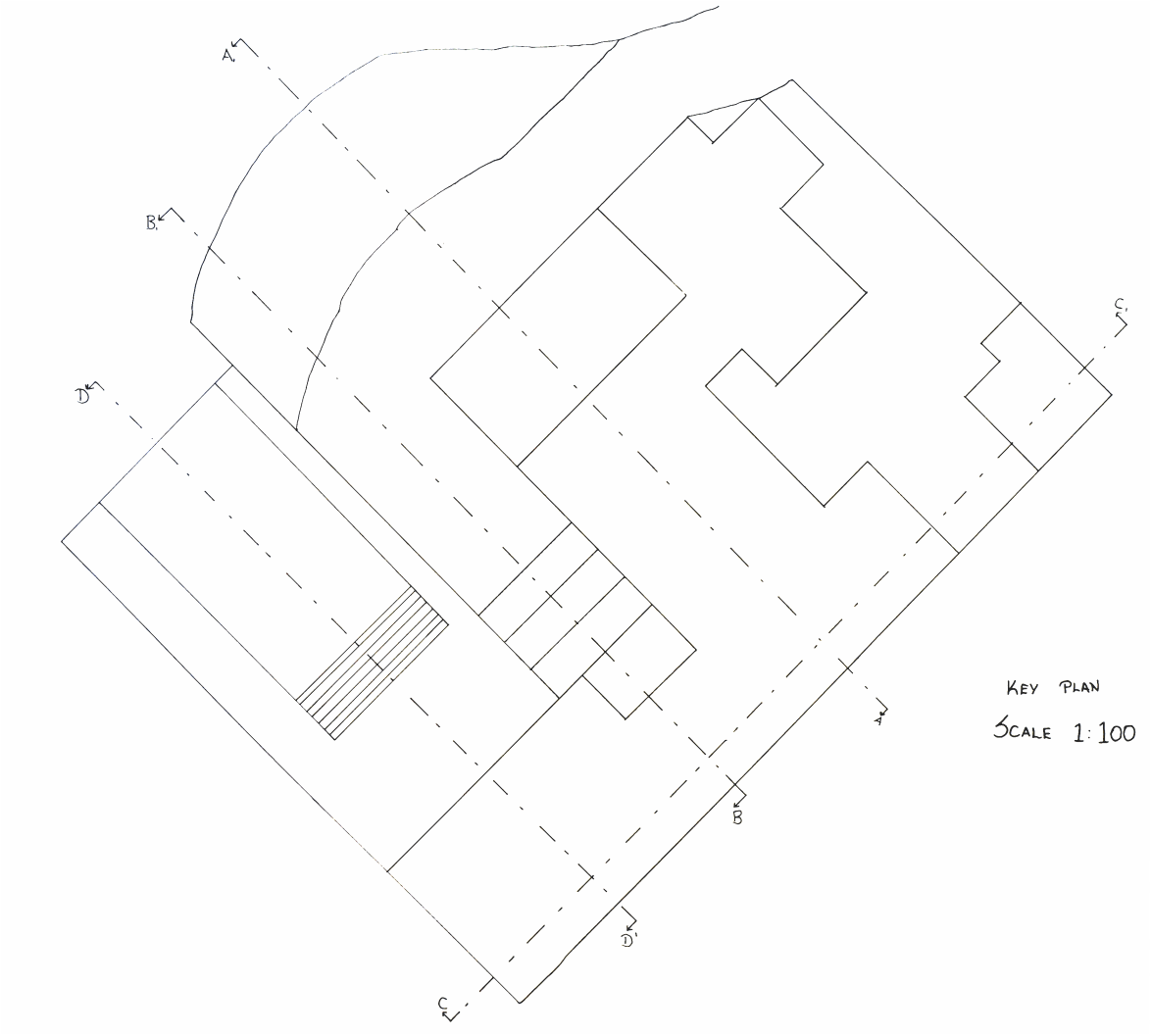

Key plan

Key plan

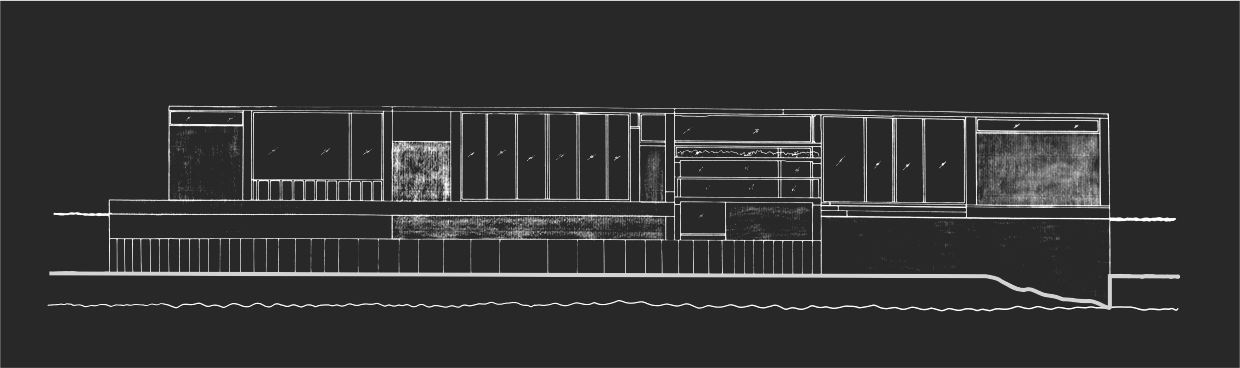

Lake side elevation

Lake side elevation

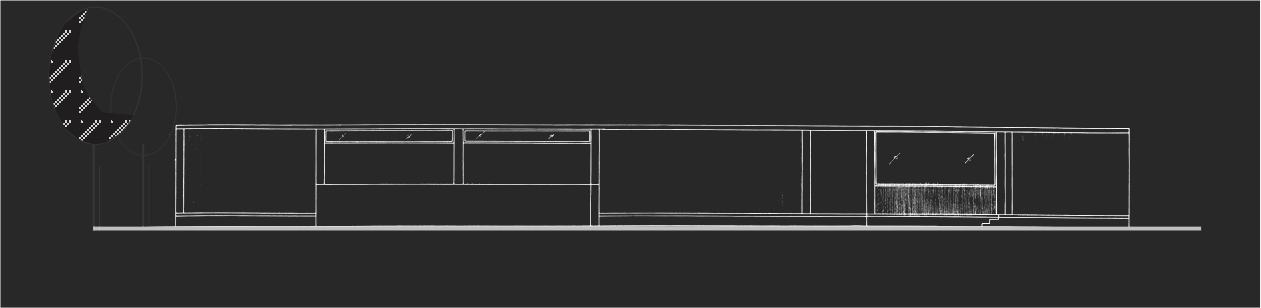

Road side elevation

Road side elevation

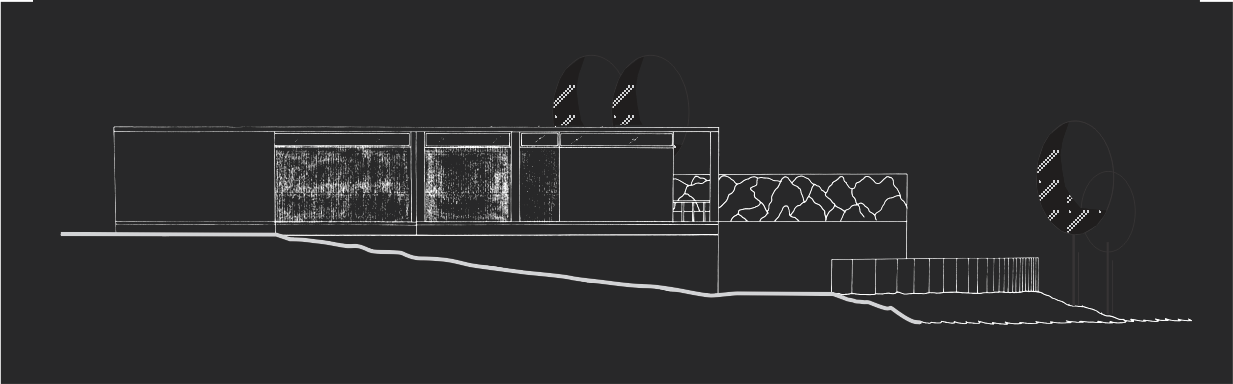

Entrance side elevation

Entrance side elevation

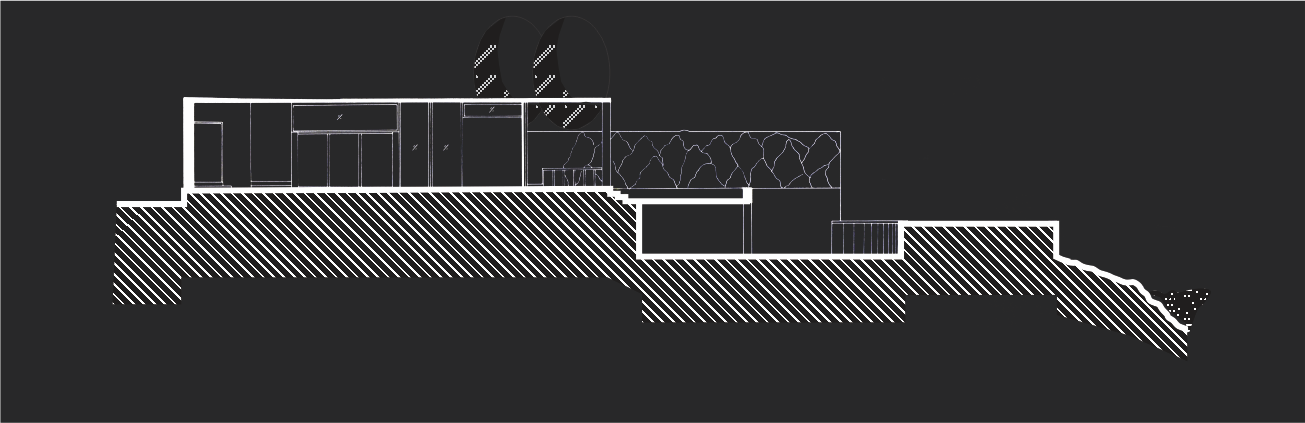

Section AA'

Section AA'

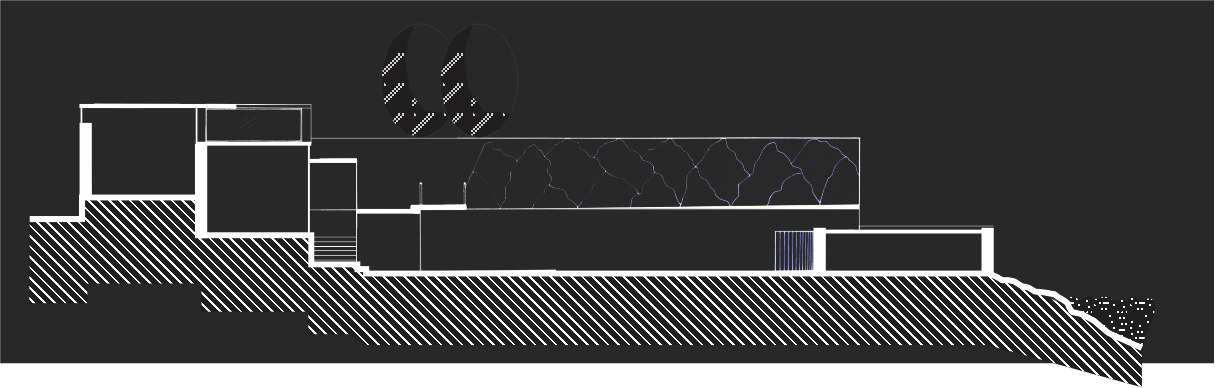

Section BB'

Section BB'

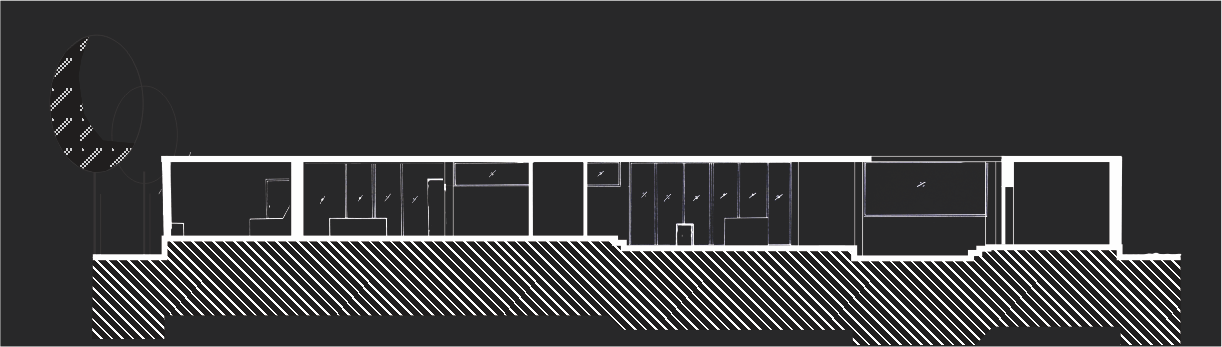

Section CC'

Section CC'

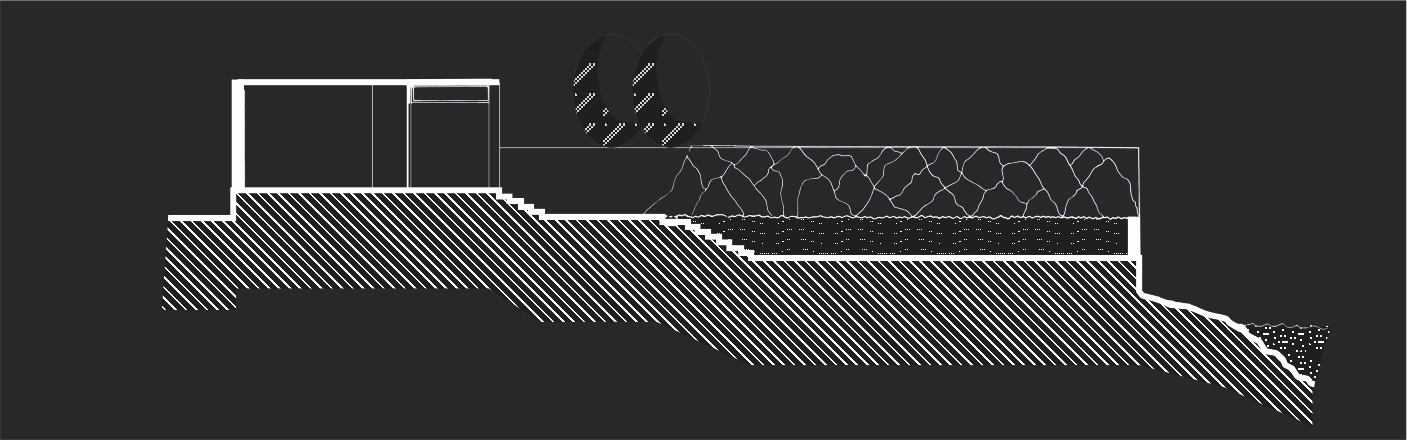

Section DD"

Section DD"

POST RETIREMENT RESIDENCE

Inspired from Mies Van Der Rohe's principle of "less is more", a post retirement residence is proposed on a site adjacent to a lake in Anand, Gujarat. A series of units having a linear organization designed to either directly relate to one another or to link them through a separate and distinct linear space. Three rectangular blocks are used which are oriented in such a way that maximum lake view is captured. One of the mass is separated both physically as well as functionally. The set of minor functions are allocated to this area considering the lake view from maximum areas.
